Swing arm creation with powertrain assembling

The swing arm was designed to receive the electric motor, the CVT and the gear reducer. From a vehicle dynamics point of view, it is not the right choice given the amount of unsuspended mass. But this choice was guided by the limited amount of space. It had also the advantage of reducing the complexity for the chain setup and maintenance.

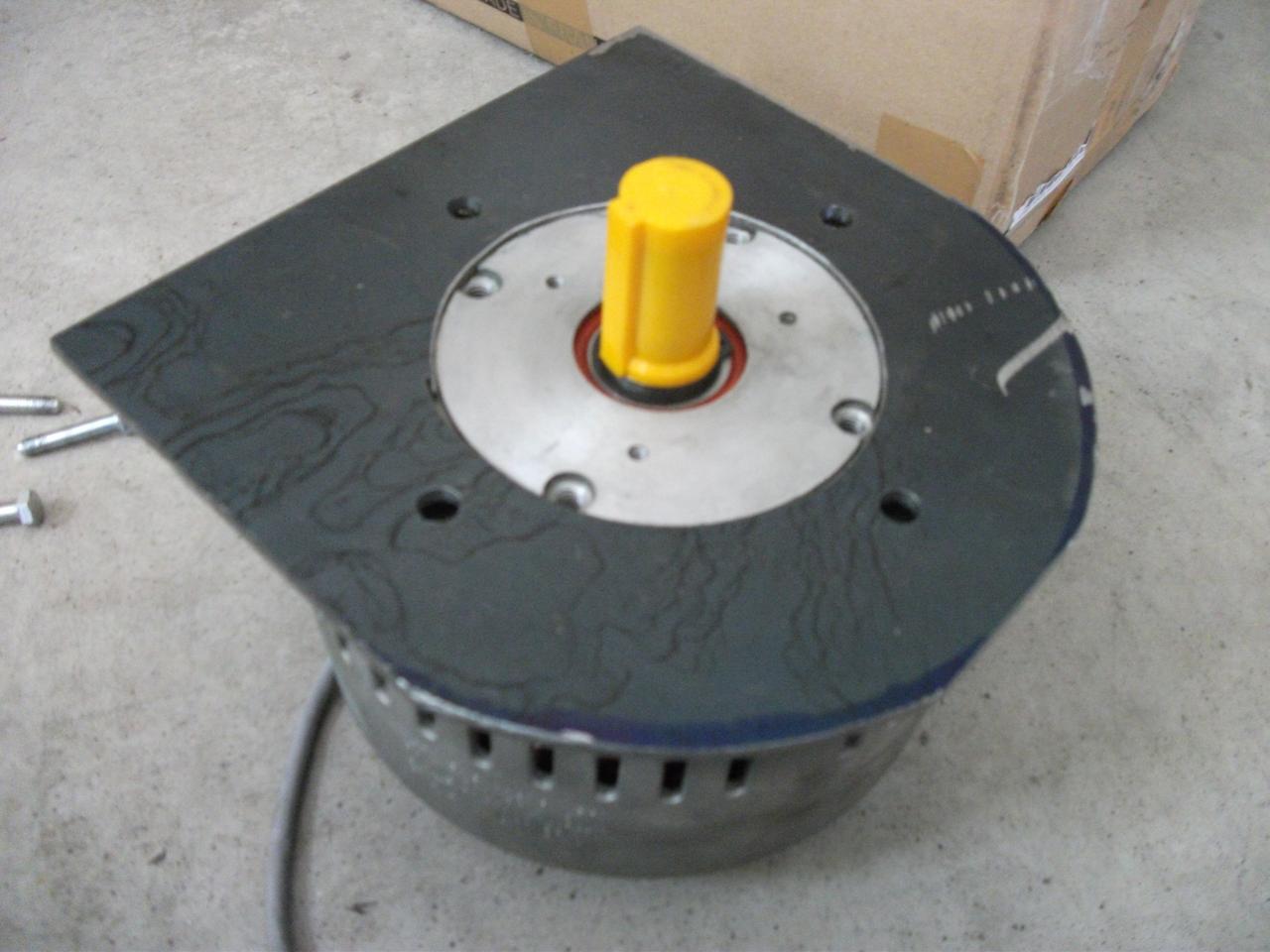

Electric motor with its supporting plate

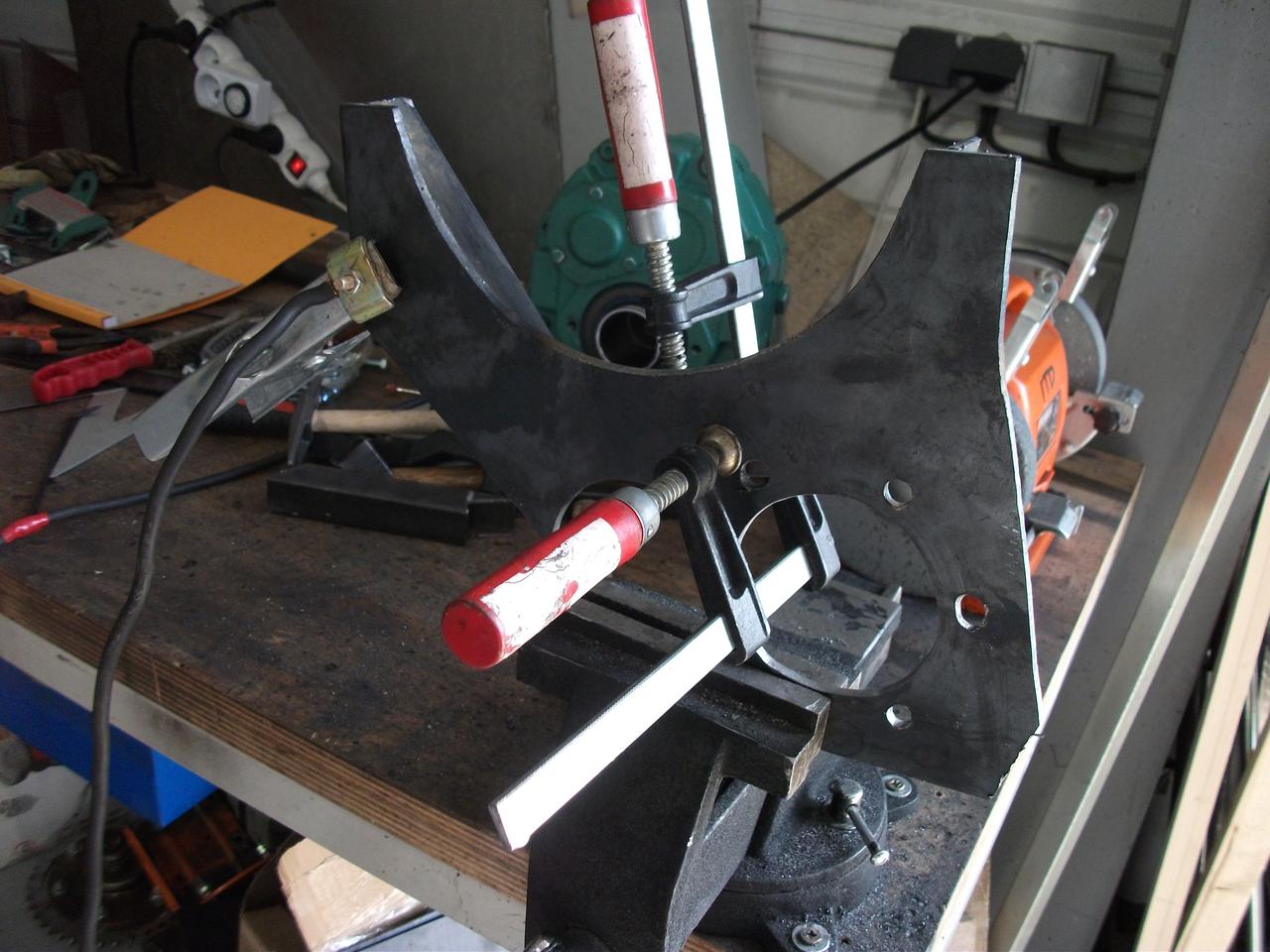

Gear reducer support on the workbench

Cutting some metals with an angle grinder

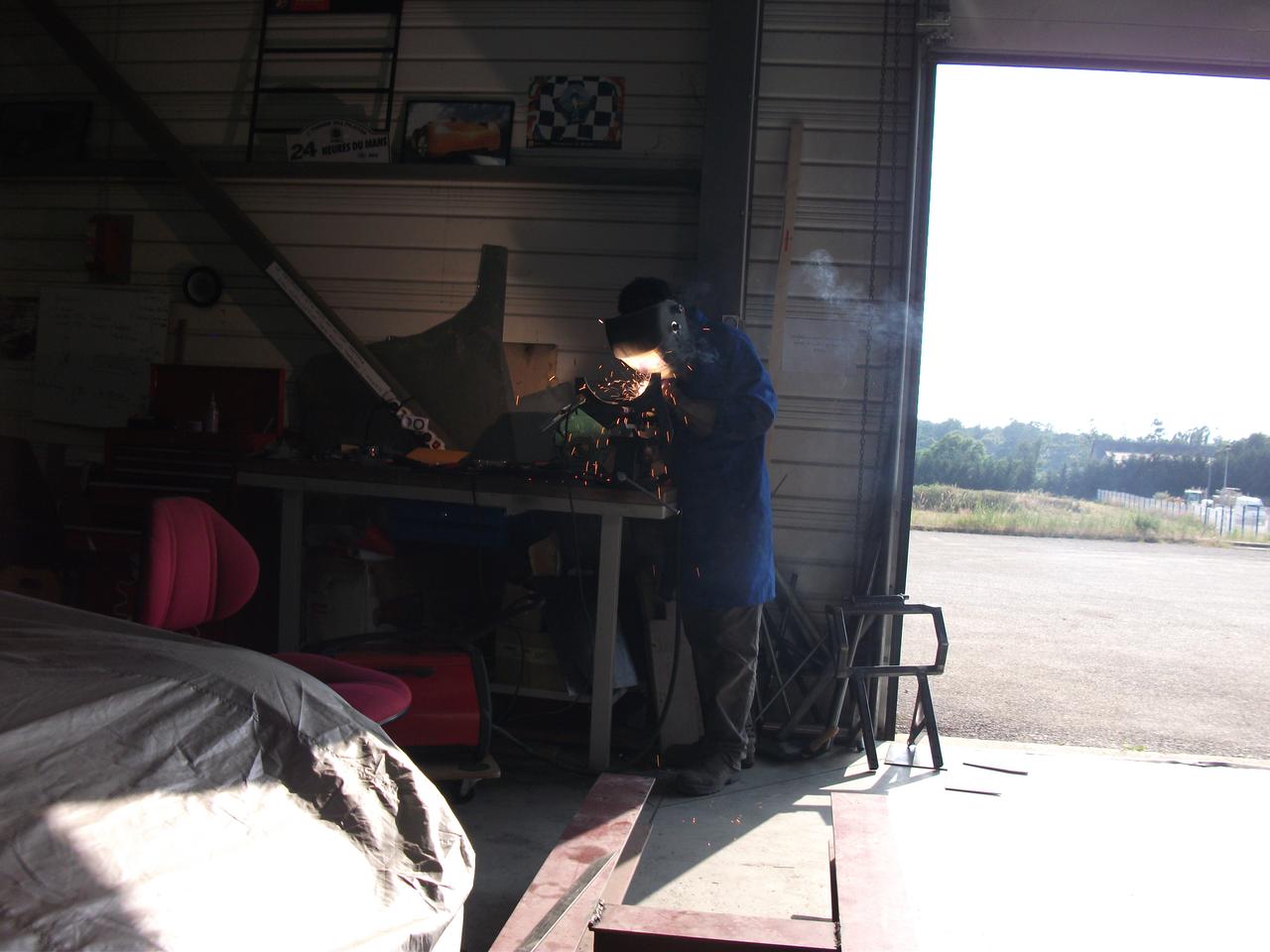

Welding of the gear reducer support

Welding of stiffeners on the motor supporting plate

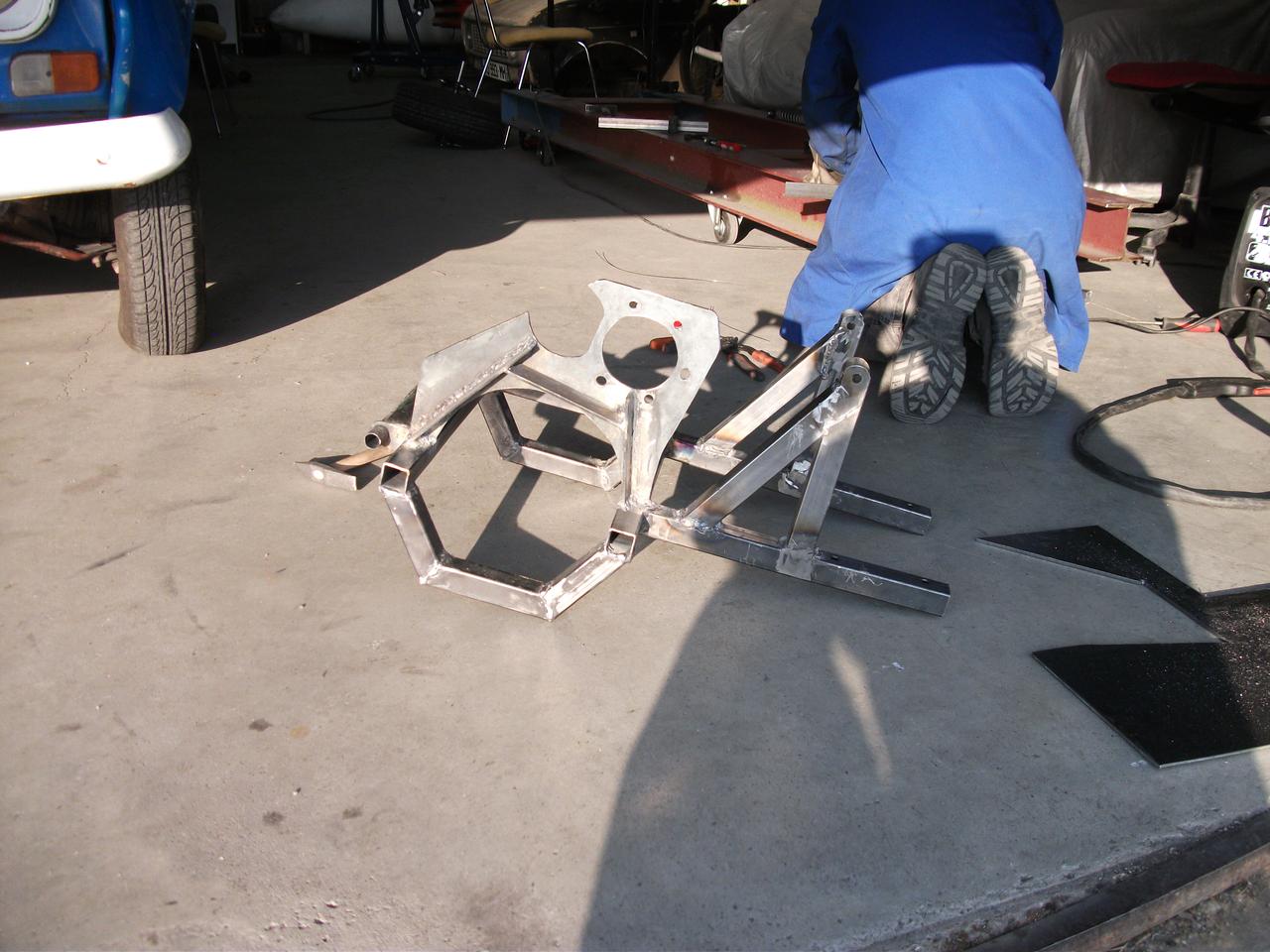

Swing arm without the motor supporting plate

Swing arm finished

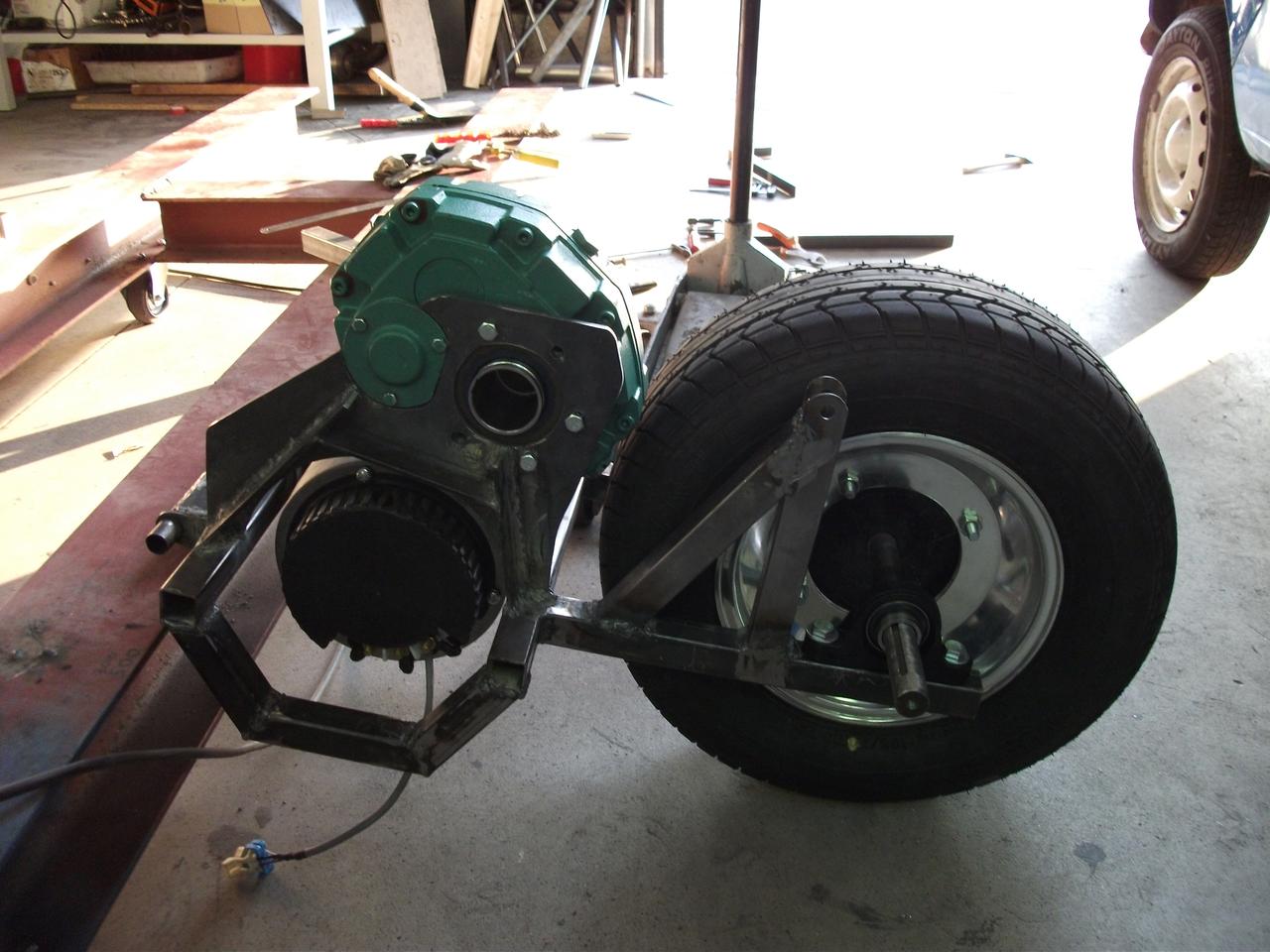

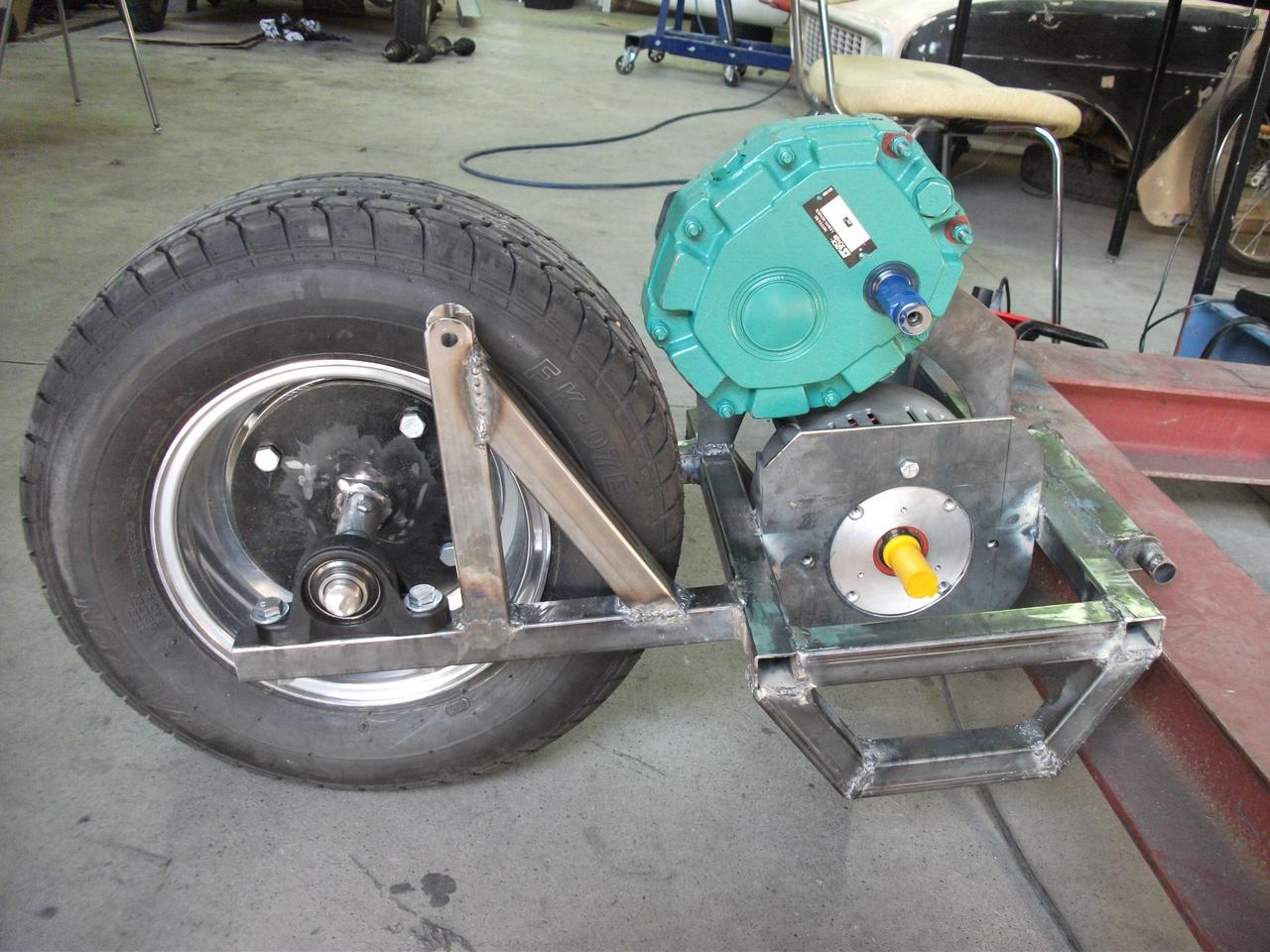

First attempt to fix all the components on the swing arm (1)

First attempt to fix all the components on the swing arm (2)

Swing arm painted and equipped with all the components

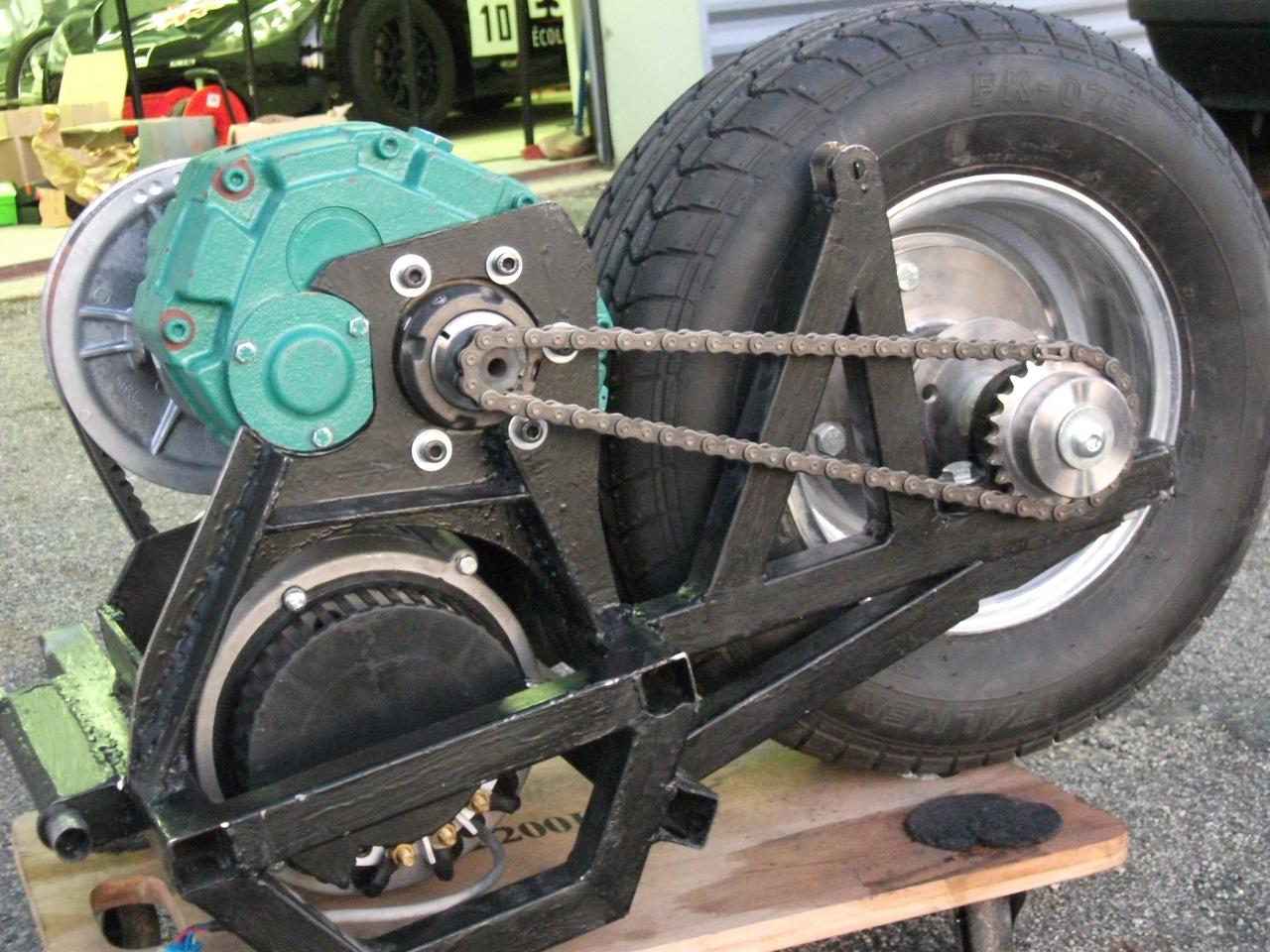

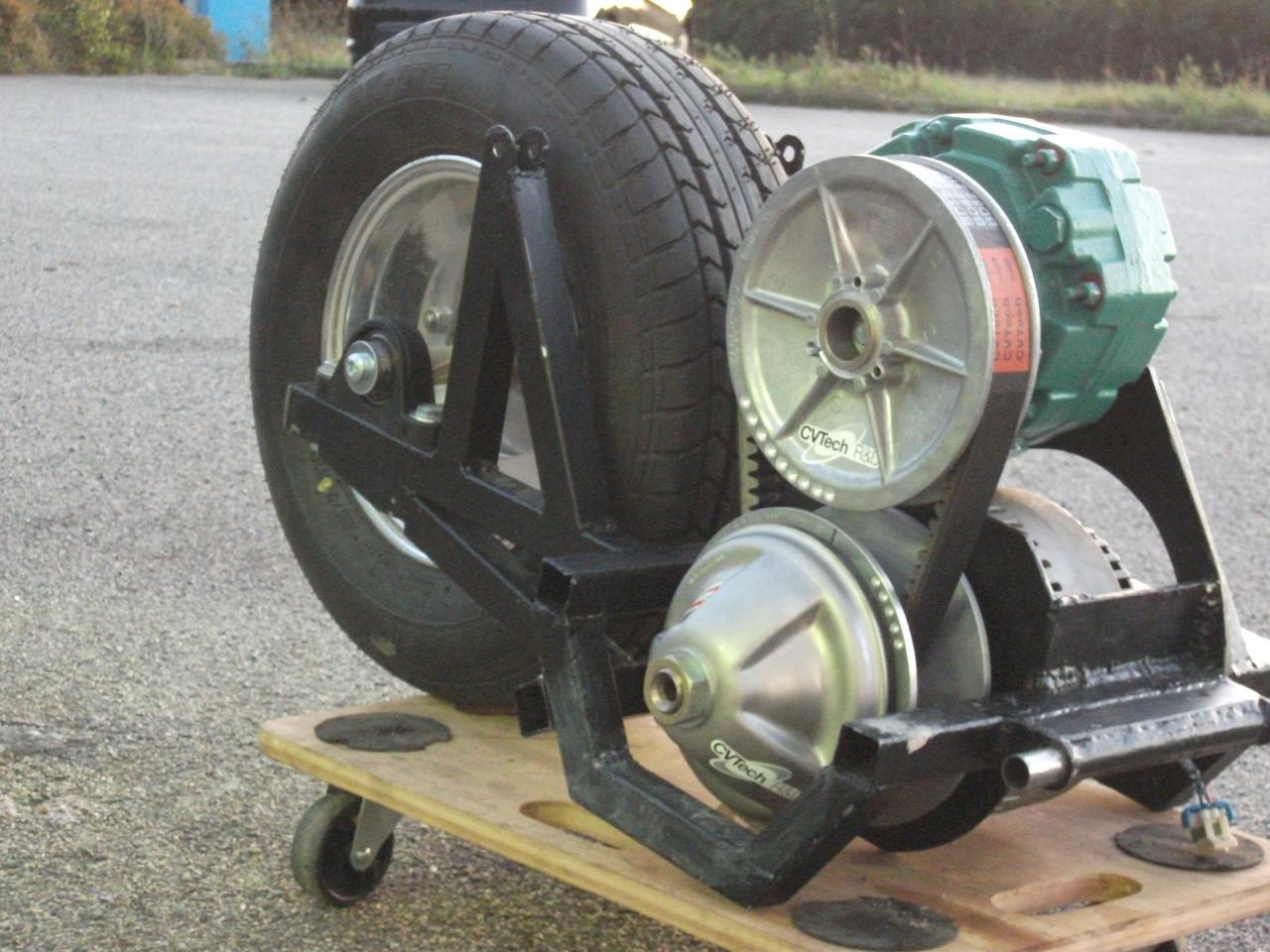

Powertrain ready and mounted on the swing arm (1)

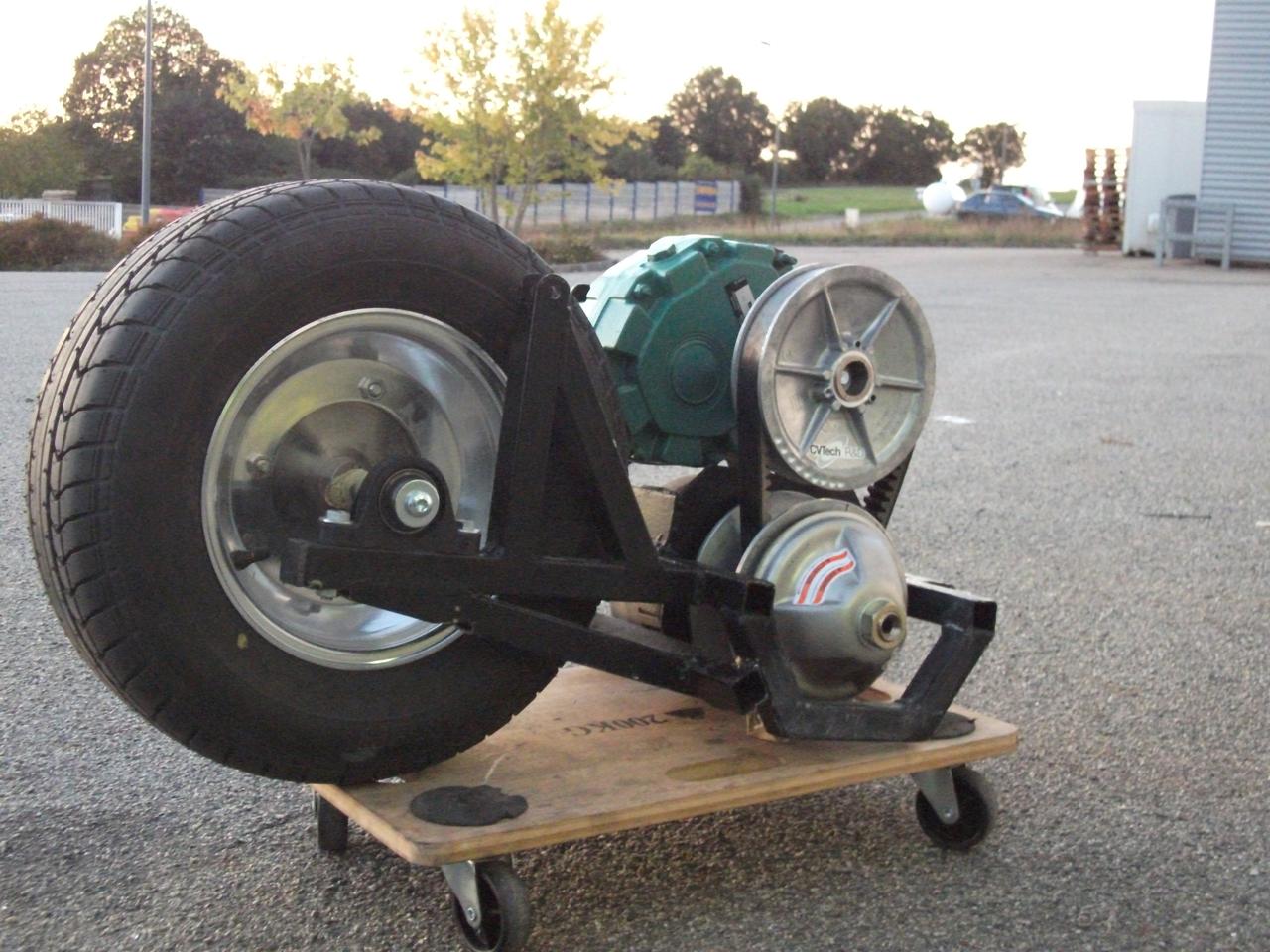

Powertrain ready and mounted on the swing arm (2)

Powertrain ready and mounted on the swing arm (3)

Powertrain ready and mounted on the swing arm (4)

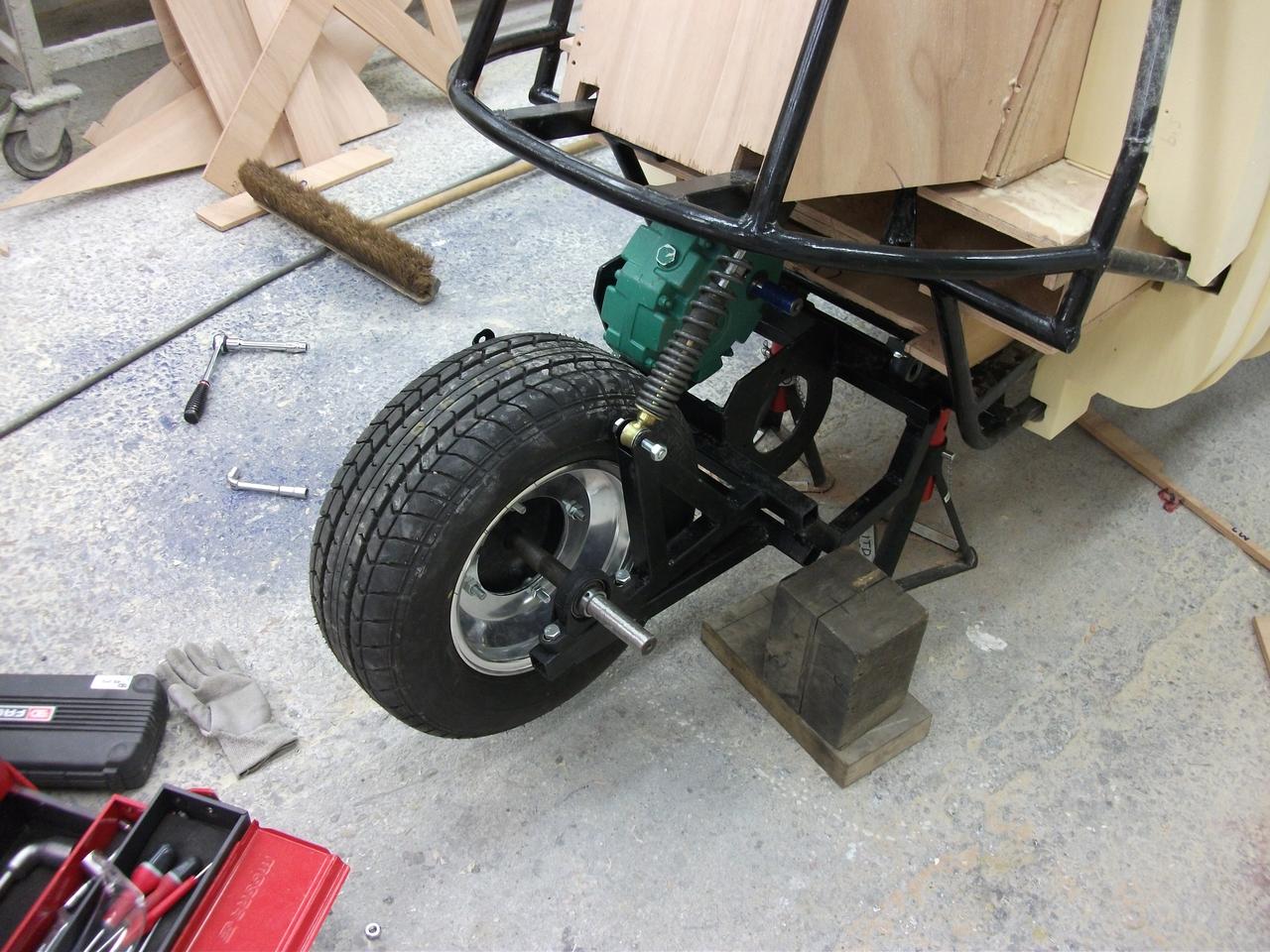

Swing arm mounted for the first time on the frame
