Frame welding

Frame welding

From the CAD, the tubular structure was cut, bent ad welded together to create the frame of the vehicle.

Front part which should hold the front wheel.

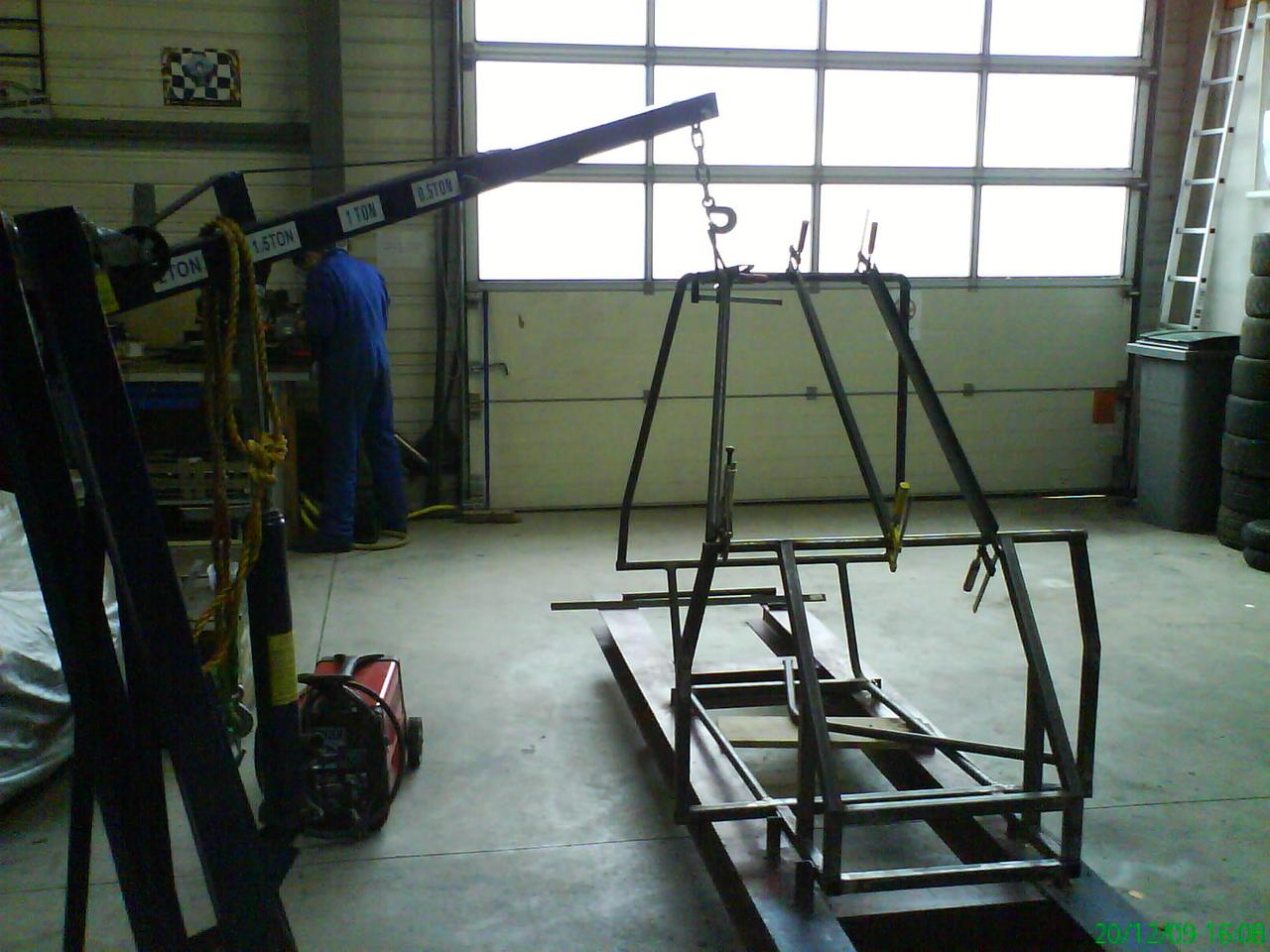

Picture of the frame in the middle of the process on top of the marble.

Display of the arches' welding setup (front)

Display of the arches' welding setup (zoom)

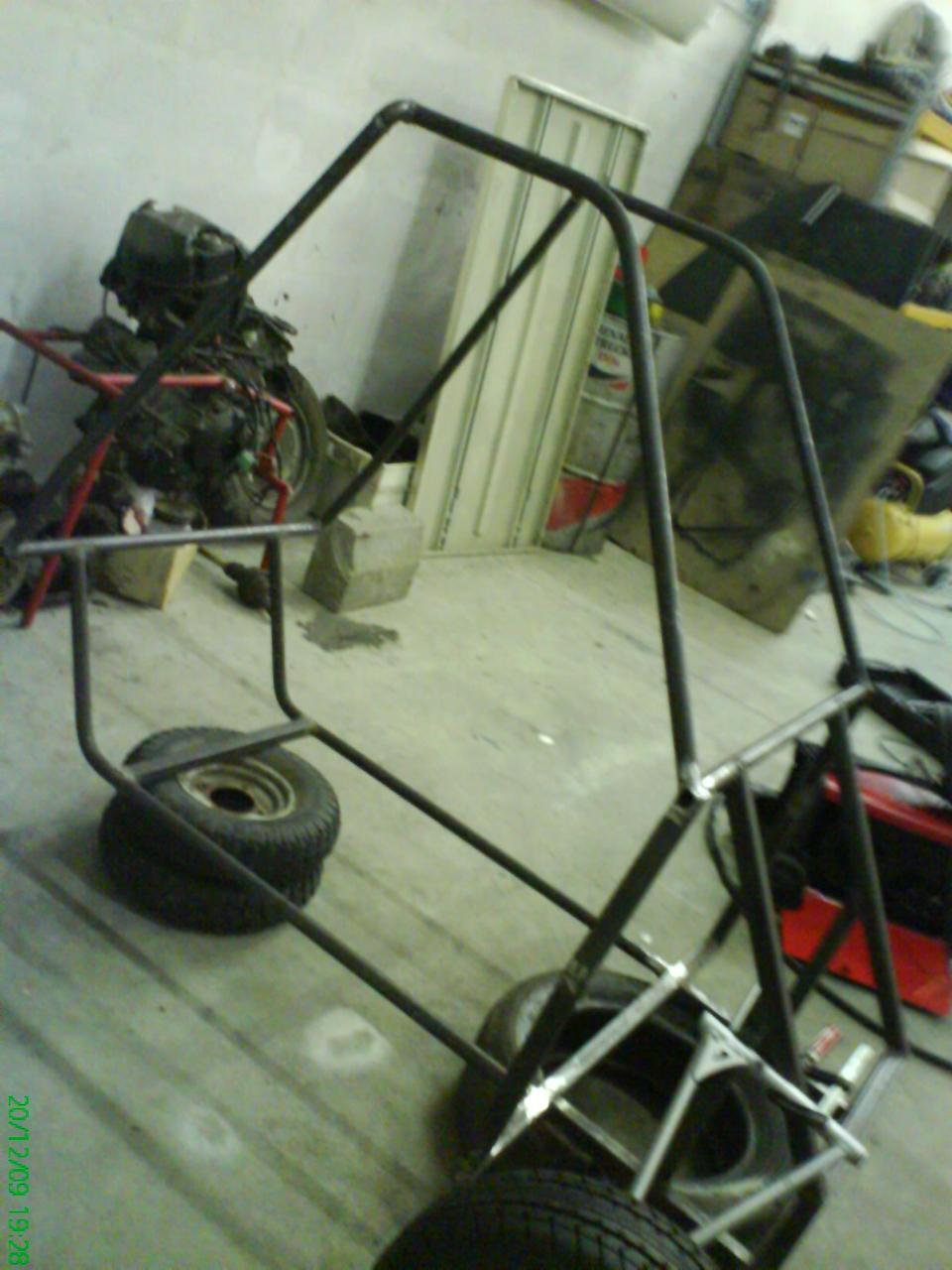

Main shape of the frame.

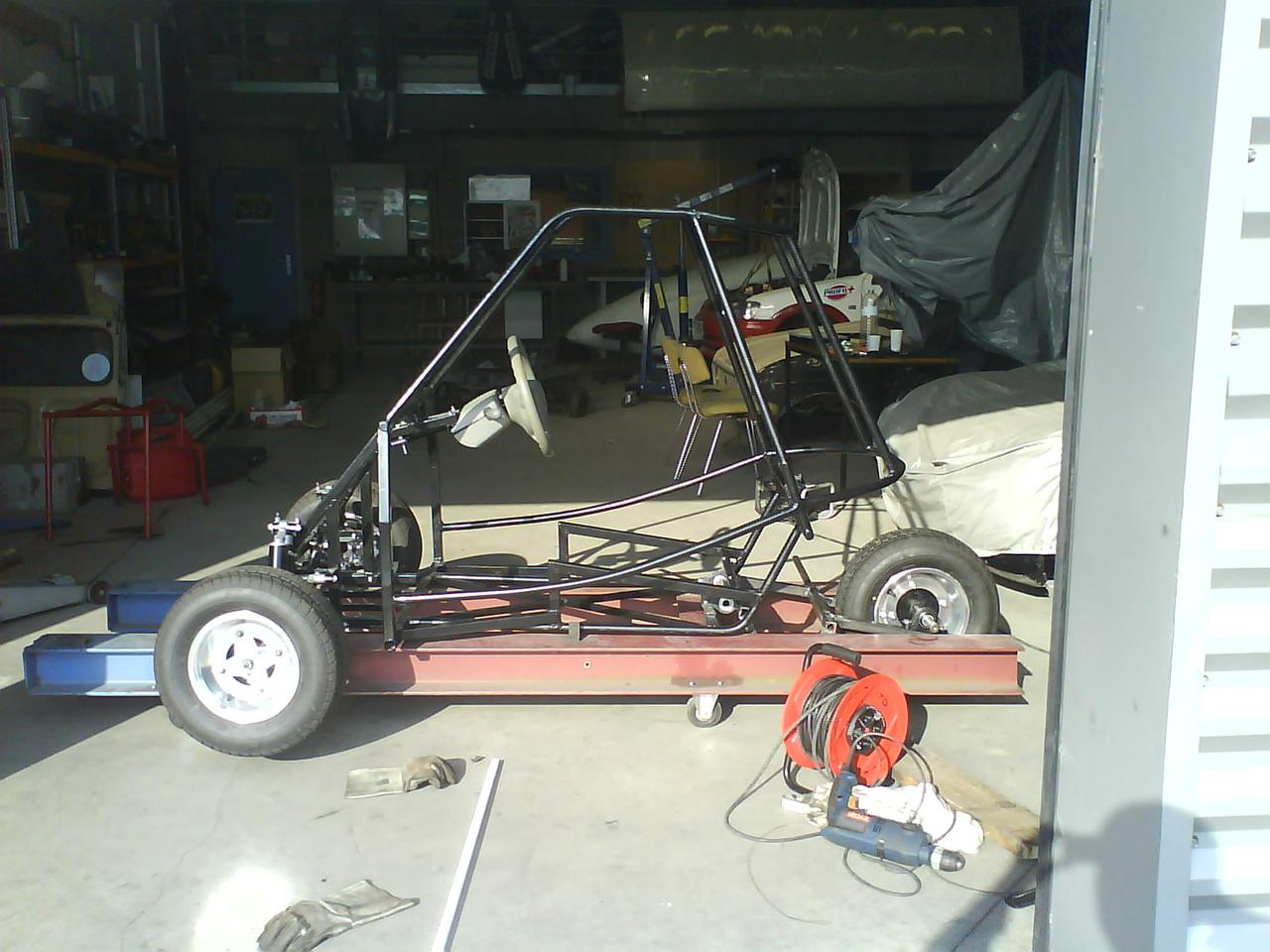

Side view of the frame

Link of the wing arm with the frame

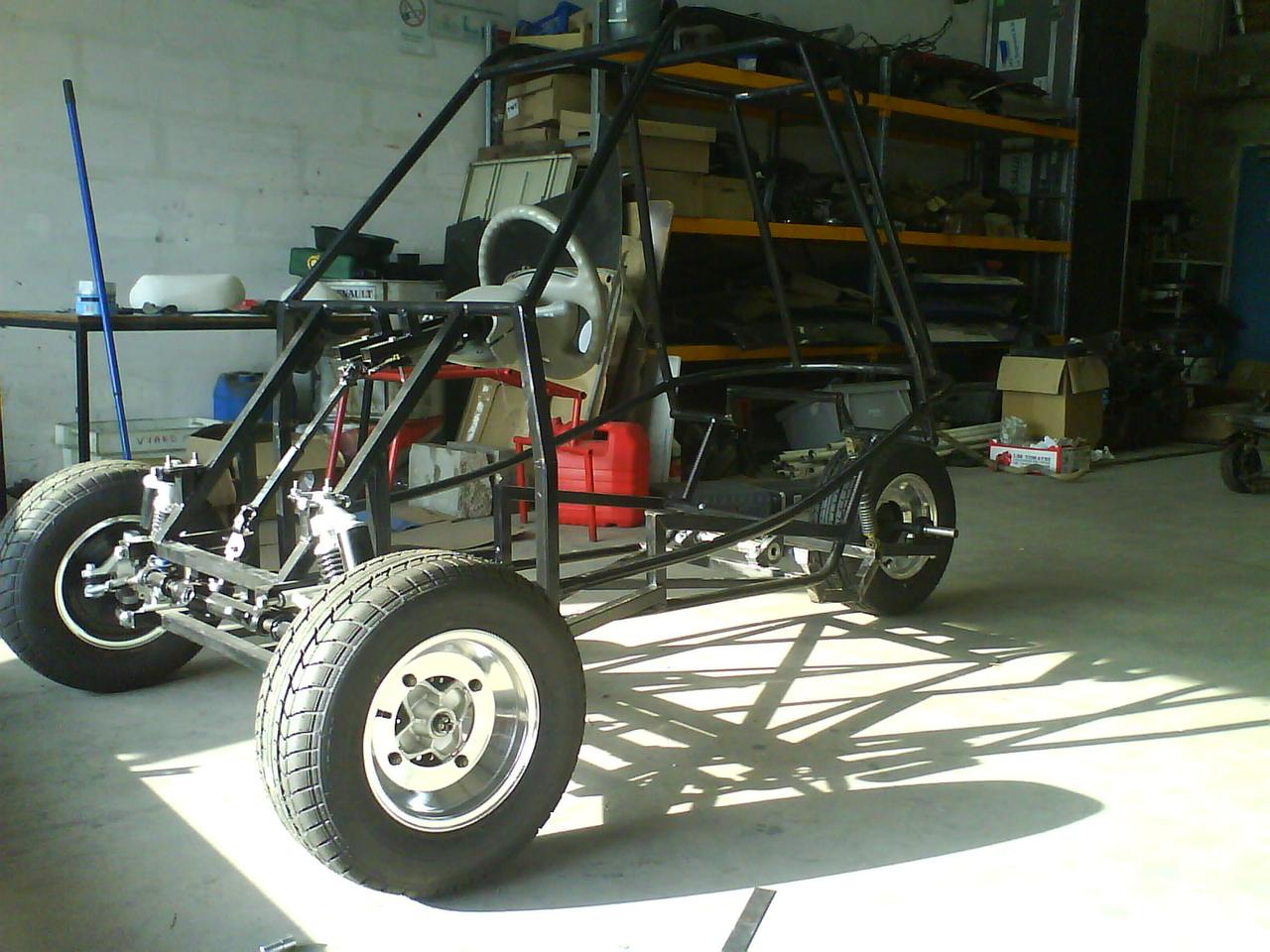

Front view of the frame with on its wheels
